SE-20L Explosion proof Vacuum Stirring Reactor for Pilot Research and Development

NegotiableUpdate on 01/20

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The SE minimalist reactor system has volumes of 1L, 2L, 5L, 10L, 15L, 20L, 30L, 50L, 100L, etc. It can achieve material dispersion, emulsification, homogenization, mixing and other process under vacuum or pressure environment. It can be equipped with various mixers (optional), high-speed dispersers (optional), high shear homogenizers (optional), ultra high speed and high shear grinding dispersers (optional), as well as reliable vacuum sealing systems and temperature control systems. Multiple sensing and detection systems can be industrialized in laboratory environments. SE-20L Explosion proof Vacuum Stirring Reactor for Pilot Research and Development

Product Details

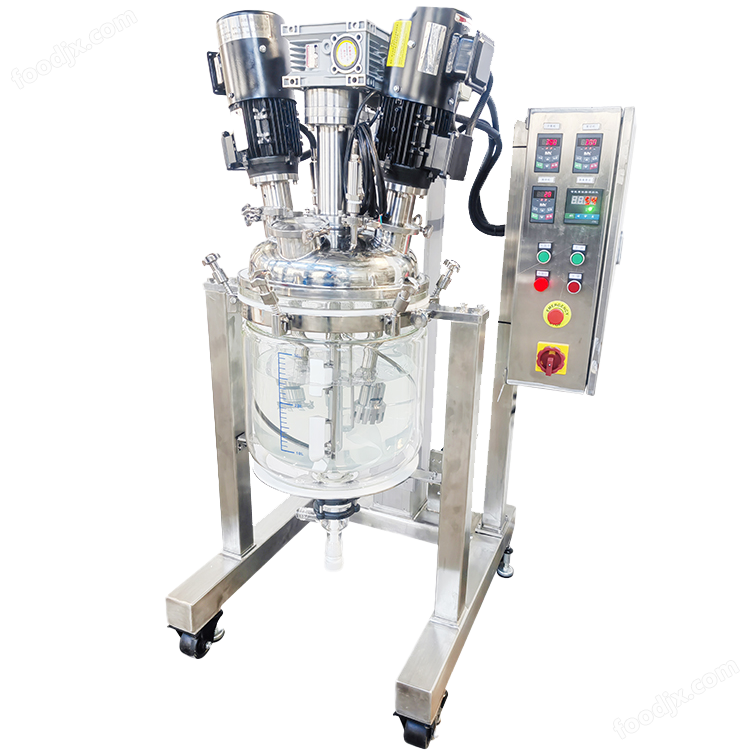

Laboratory vacuum complete reactor

SE-20LSeries vacuum complete reactorSE-20L Explosion proof Vacuum Stirring Reactor for Pilot Research and Development

SE-20LseriesExplosion-proof typeVacuum reactorApplication field

The SE minimalist reactor system has 1L、2L、5L、10LThe15LThe20LThe30L、50L、100LwaitvolumeIt can achieve processes such as dispersion, emulsification, homogenization, and mixing of materials in vacuum or pressure environments. Can be equipped with multiple mixers(Optional)、High speed disperser (optional)High shear homogenizer emulsifier(Optional)、Ultra high speed and high shear grinding and dispersing machine (optional),And reliable vacuum sealing system and temperature control system, multiple sensing and detection systems can be industrialized in laboratory environments.

SE-20L中试研发用防爆型真空搅拌反应釜

SE-20LseriesExplosion-proof typeCharacteristics and advantages of vacuum reactor

At the bottomModular design of equipment, with optional installation of various typesmixsystem

At the bottomVariable frequency high-speed motor, stable operation for a long time

At the bottomThe overall structure design is reasonable,Strong scalability

At the bottomStepless speed regulation, the speed can reach up to6000rpm， For 27Shear line velocity of m/s

At the bottomMeet your different work environments (closed, open, normal pressure, vacuum)

At the bottomOverload protection, dual protection insulation, providing you with safety assurance

At the bottomThe working head is made of stainless steel material and can be reused，Modular design of equipmentAny system can be flexibly combined.Add any other customized features you need

SE-20LseriesExplosion-proof typeVacuum reactorTechnical parametersSE-20L Explosion proof Vacuum Stirring Reactor for Pilot Research and Development

Brand Model：	SE-20L	SE-30L	SE-50L	SE-100L
electricity Source:	220V/50/60Hz	220V/50/60Hz	220V/50/60Hz	380V/50/60Hz
Explosion proof grade:	ExdIIBT4	ExdIIBT4	ExdIIBT4	ExdIIBT4
Mixing volume:	8~20L	12~30L	20~50L	30~100L
Processing capacity:	10~20L	15~30L	25~50L	50~100L
Operating Temperature	120 ° (optional for high temperature)	120 ° (optional for high temperature)	120 ° (optional for high temperature)	120 ° (optional for high temperature)
Heating method:	water bathOil bathcycle	water bathOil bathcycle	water bathOil bathcycle	water bathOil bathcycle
Can reach vacuum：	-0.096Mpa (Positive pressure optional)	-0.096Mpa (Positive pressure optional)	-0.096Mpa (Positive pressure optional)	-0.096Mpa (Positive pressure optional)
Handling viscosity:	130000CP	130000CP	130000CP	130000CP
Blender power:	750W	1500W	1500W	2200W
Blender speed:	13~86rpm	13~86rpm	13~86rpm	13~86rpm
Blade configuration:	anchor typeSpiral belt typeScraping wall stirring blade（Other forms are optional）	anchor typeSpiral belt typeScraping wall stirring blade（Other forms are optional）	anchor typeSpiral belt typeScraping wall stirring blade（Other forms are optional）	anchor typeSpiral belt typeScraping wall stirring blade（Other forms are optional）
Scraper material:	PTFE (silicone optional)	PTFE (silicone optional)	PTFE (silicone optional)	PTFE (silicone optional)
Vacuum emulsifier system(Modular optional)
Emulsifying homogenizer power:	1500W	1500W	2200W	4000W
Emulsifying homogenizer speed:	300~6000rpm	300~6000rpm	300~6000rpm	300~3600rpm
Emulsifying head model:	60BCS	80BCS	90BCS	120BCS
Vacuum disperser system(Modular optional)
Disperser power:	1500W	1500W	2200W	4000W
Disperser speed:	Emulsifying homogenizer speed:	300~6000rpm	300~6000rpm	300~6000rpm
Dispersion disk specifications:	60mm	80mm	90mm	120mm
Lift system reaction kettle function
Reactor lid opening:	Homogenizer port+Feeding port+temperature measuring port+vacuum port+3 spare ports	Homogenizer port+Feeding port+temperature measuring port+vacuum port+3 spare ports	Homogenizer port+Feeding port+temperature measuring port+vacuum port+3 spare ports	Homogenizer port+Feeding port+temperature measuring port+vacuum port+3 spare ports
Bracket lifting method:	Electric lifting	Electric lifting	Electric lifting	Electric lifting
Bracket lifting formation:	430mm	530mm	630mm	700mm
Contact material material:	SUS316L stainless steel+PTFE	SUS316L stainless steel+PTFE	SUS316L stainless steel+PTFE	SUS316L stainless steel+PTFE
Reactor body material:	SUS316L stainless steel container Including interlayer and insulation layer	SUS316L stainless steel container	SUS316L stainless steel container	SUS316L stainless steel container
Vacuum portouter diameter：	12mm	12mm	12mm	12mm
Mezzanine import、Export：	Refer to the design drawing
outer packaging dimensions：	Refer to the design drawing
weight：	Refer to the design drawing
Packaging method:	wooden case packaging

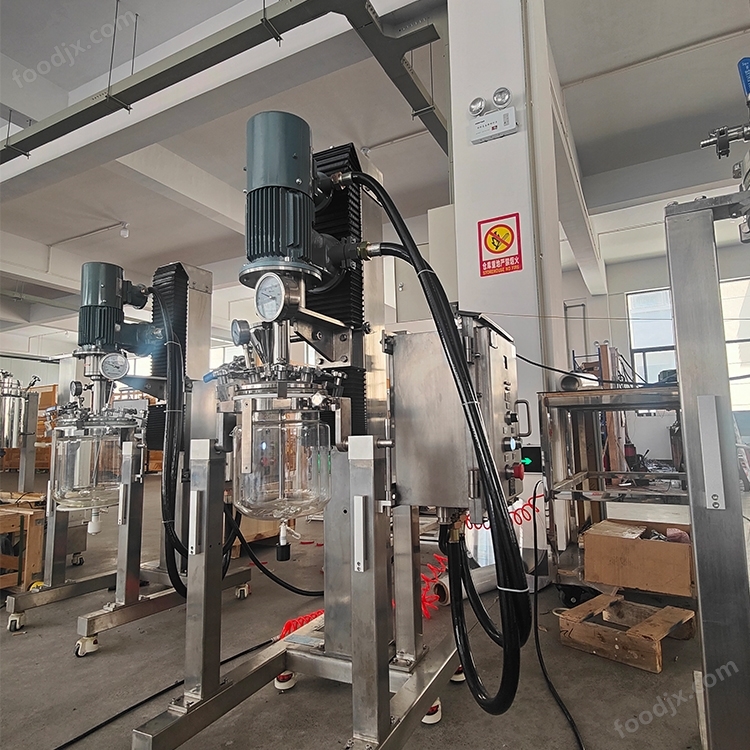

SE-20LseriesExplosion-proof typeOn site pictures of vacuum reactor applications

SE-20L中试研发用防爆型真空搅拌反应釜

Optional configuration(Constant temperature sealed ultrasonic reactor)

At the bottomPH meter

At the bottomconductivity meter

At the bottomcondenser

At the bottomDrip tube

At the bottomAseptic sampling valve
