Large bottle blowing machine

NegotiableUpdate on 01/07

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Large bottle blowing machine: good production efficiency, infinitely flexible configuration. Compared with domestic peers, the energy consumption of New Speed Special Bottle Blowing has saved more than 30% of electricity and more than 10% of gas. Taking the 24000 blowing, filling and spinning production line as an example, based on 22 hours of production per day and 280 days of production per year

Product Details

bigbottlebottle blowingmachineSystem:

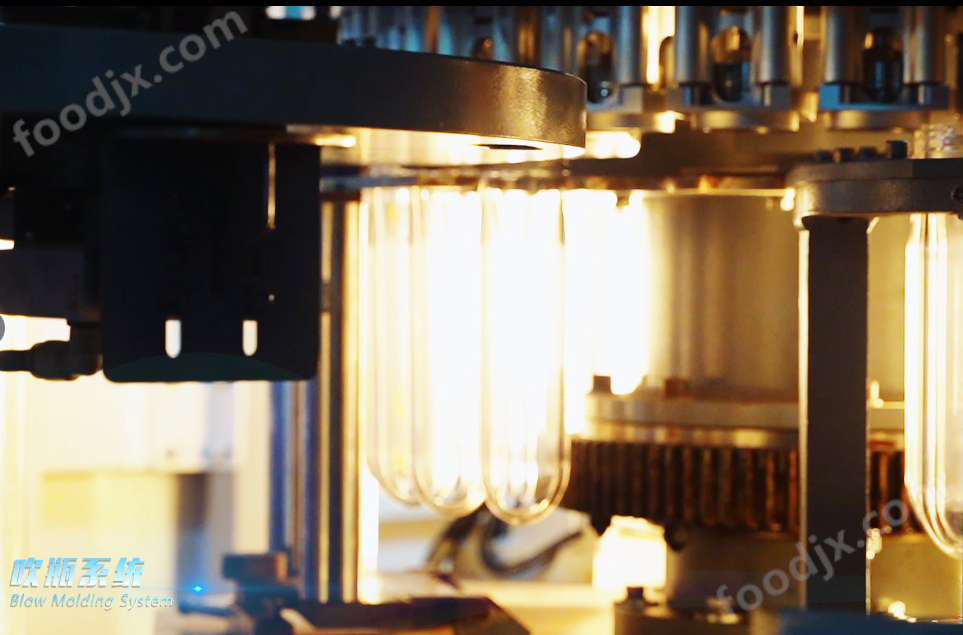

Blow Molding System

PET rotary blow molding machine: good production efficiency, infinitely flexible configuration.

PET rotary blowing machine: Excellent production efficiency, unlimited flexibility of configuration.

Intelligent blowing bottle for reclaimed waterCompared to domestic peers, energy consumption has been reduced by over 30% in electricity and over 10% in gas, with a total savings of 24000Blowing, irrigating, and spinningTaking the production line as an example, based on a daily production of 22 hours and an annual production of 280 days, using only electricity (blowing bottles and air compression) can save 550000 yuanRenminbi (RMB)/About a year.

Compared with the domestic counterparts, the energy consumption of blowing bottle can save more than 30% of electricity and save more than 10% of gas. Taking 24,000 blowing and rotating production lines as an example, according to the production of 22 hours per day and 280 days per year, only the electricity (blowing bottle and air pressure) can save about 550,000 yuan/year.

大瓶吹瓶机

1. Large bottle blowing machineManufacturers of main components

serial number	Function Name	brand	Brand Country
1	main motor	SEW	Germany
2	frequency converter	DANFOSS	Denmark
3	PLCcontrol software	SIEMENS	Germany
4	Programmable controller	SIEMENS	Germany
5	Operation Center	SIEMENS	Germany
6	heating control	Jiale	Switzerland
7	Infrared thermometer	OPTEX	Japan
8	encoder	Sick	Germany
9	limit switch	Sick	Germany
10	photoelectric switch	Sick	Germany
11	proximity switch	Sick	Germany
12	Eliminate static electricity	Miqi	the United Kingdom
13	proportional valve	Mls	Germany
14	Torque clutch	Gongnuo	Germany
15	Low pressure control solenoid valve	Mac	the United States
16	High pressure solenoid valve	Norcrown	the United Kingdom
17	Servo stretching	Rexroth	Germany
18	straight track	Rexroth	Germany
19	linear bearing	Rexroth	Germany
20	Air source filtration device	woker	the United Kingdom

Intelligent specifications and output table for reclaimed water Grandee Specification And Production Table
DCP2	DCP4	DCP6	CP6B/X	CP8B/X	CP10B/X	CP12B/X	CP14B/X	CP16B/X	CP18B/X	CP20B/X	CP22B/X	CP24B/X
2	4	6	6	8	10	12	14	16	18	20	22	24
			12000	16000	20000	24000	28000	32000	36000	40000	44000	48000
			9600	12800	16000	19200	22400	25800	28800	32000	35200	38400
2000	4000	6000	14400	19200	24000	28800	33600	36000	40500	45000	49500	54000
			9600	12800	16000	19200	22400	25600	28800	32000	35200	38400
			6000-9000	8000-12000	10000-15000	12000-18000	14000-21000	16000-24000	18000-27000	20000-30000	22000-33000	24000-36000
2000	4000	6000
1200	3000	4500
	8000		12000	16000	20000	24000	28000	32000	36000	40000	44000	48000

大瓶吹瓶机

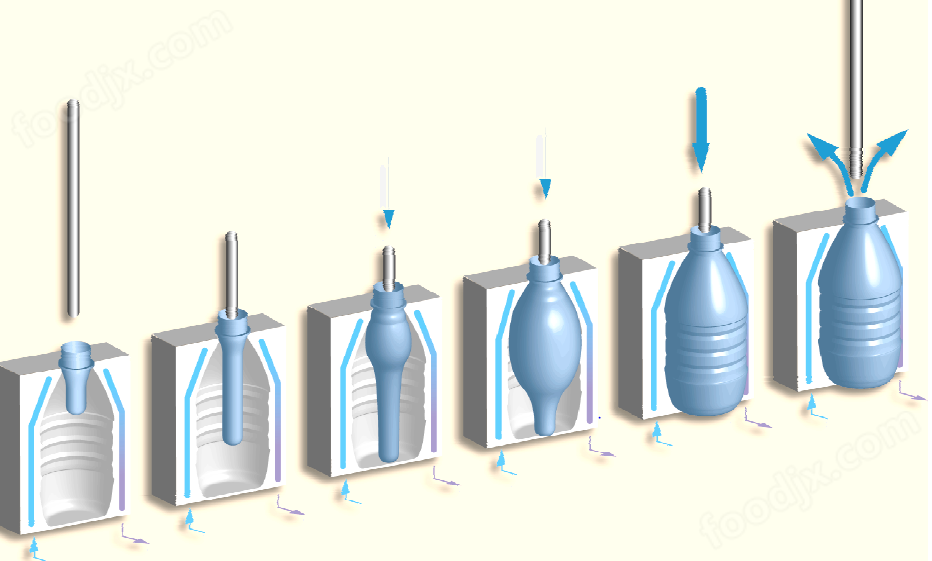

(Process flowchart)

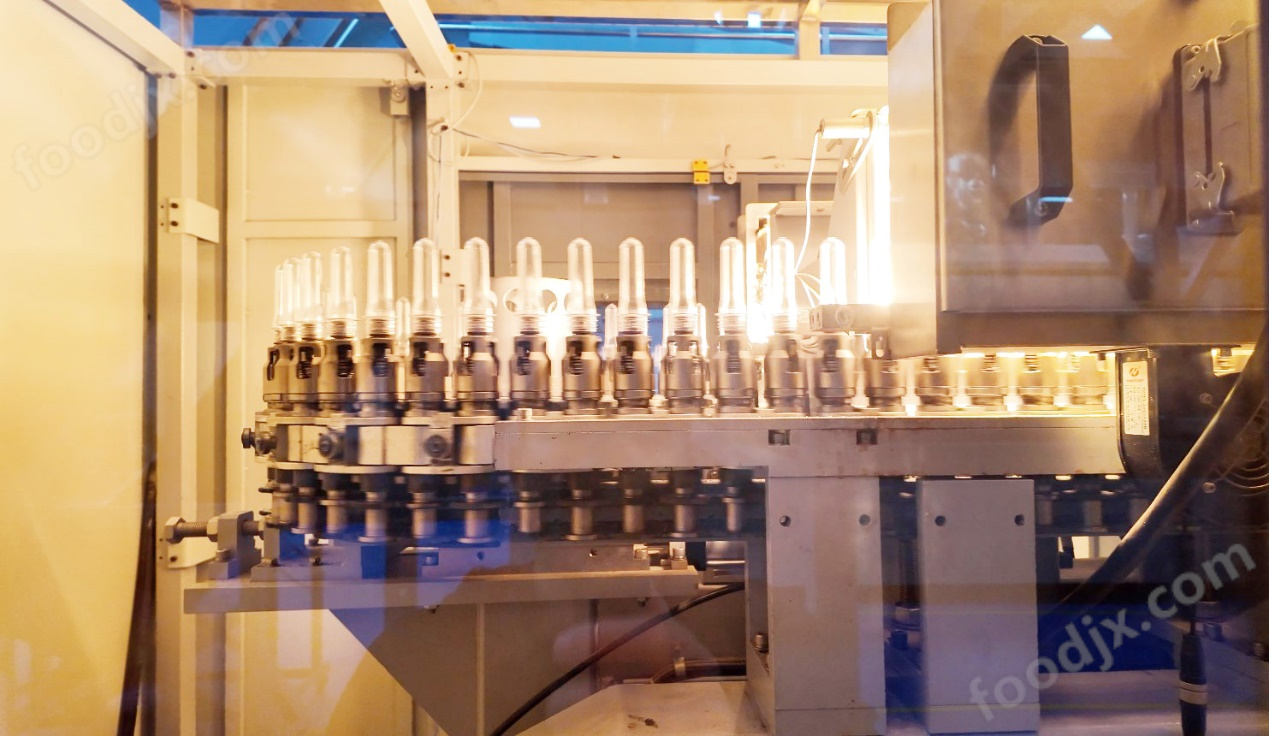

1. Hopper and feeding mechanism

Storing a certain amount of bottle preforms through a hopper to ensure the continuity of production; The conveyor belt in the hopper lifts the bottle preforms to a higher levelblankThe organization arranges the preforms neatly in a row,Bottle preform cutting in sequenceThe track enters the heating furnace equipment of the bottle blowing machine.

Equipment performance description:

The bottle preforms are placed in the hopper and are monitored by the computer without the need for assistance. The amount of preforms can be automatically adjusted according to the production speed; According to different types of preforms, the output speed can be adjusted arbitrarily to ensure that the conveying volume of preforms is consistent with production; Rotating plastic conveyor belt and rotating drum conveyor ensure that bottle preforms are not damaged or contaminated during the transfer process.

大瓶吹瓶机

model	CGX20-6
workstation count	bottle blowing6, Filling20, screw cap6
Rated production capacity	4000--6000bottle/Hour by hour（4500ml/Bottle)
Filling method	Laser fixed liquid level, flow meter, weighing non-contact filling
Applicable bottle shape	diameterφ80－φ170mm, bottle height160－350mm
high-pressure air source	4.0Mpa M3/min
Low pressure gas source	0(High pressure gas recovery)
installed capacity	243Kw
External dimensions of bottle blowing host	× ×3500 (long×wide×high)
Outer dimensions of filling host	5100 ×4600×3500 (long×wide×high)
Equipment weight	13000Kg+8000Kg
